Details

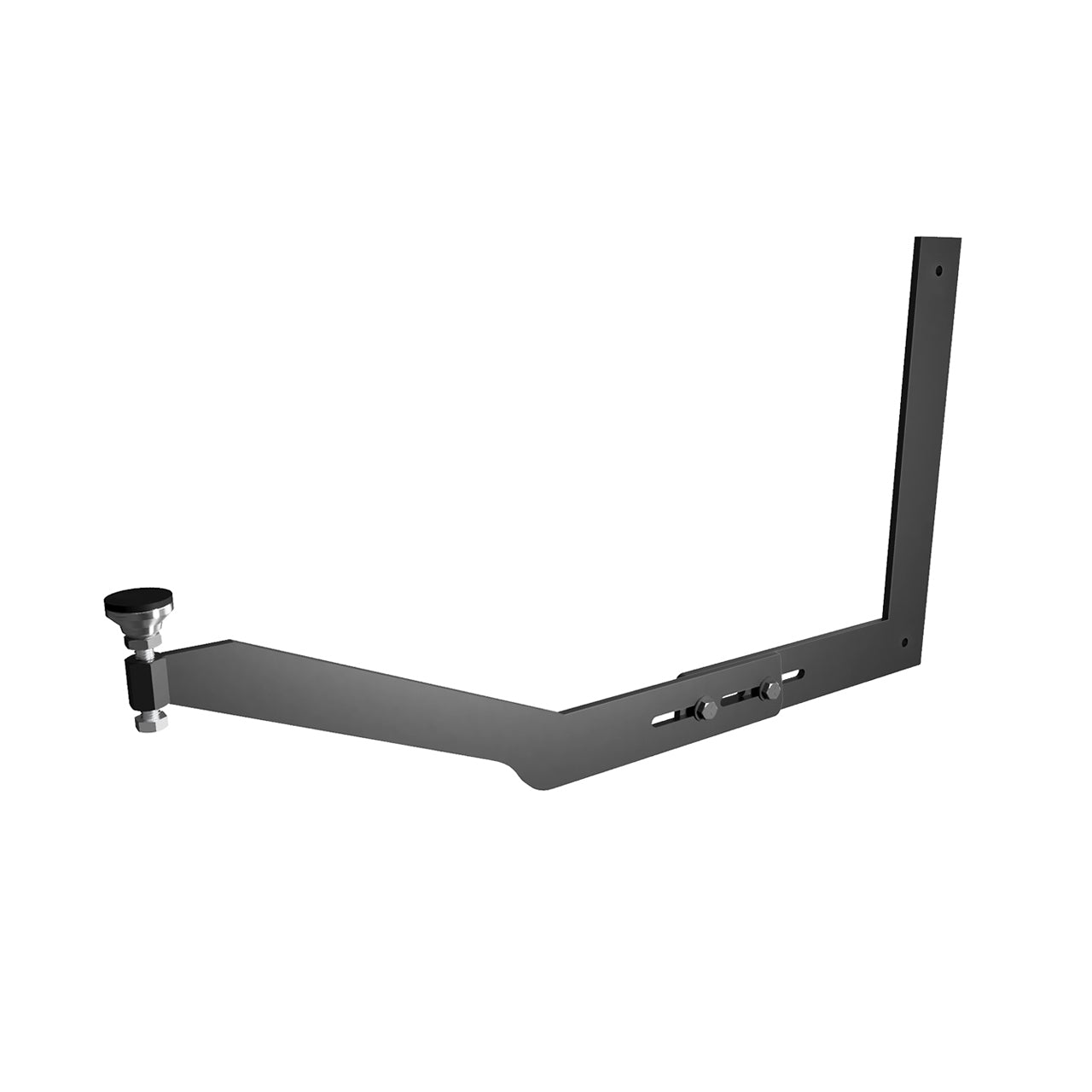

Trueform’s unique adjustable stud brackets are engineered to support our floating concrete ramp sinks. Each bracket has a slot feature that permits up to 3.5” of lateral adjustment as well as an adjustable swivel foot to ensure that the sink is evenly supported across all bracket locations. Provided these brackets are spaced no more than 32" apart, sinks of nearly any length can be wall-mounted.
FSB-B1-AS: For ramp sinks with a counter depth of 17"-20.5”
FSB-B1-AL: For ramp sinks with a counter depth of 20.5”-24”
- When installed correctly, ADA compliance is achieved.
- Steel thickness: 1/4"
- Brackets ship within 1-2 business days
- Made in the USA
- For volume orders or more information, contact us at 888-474-7977
Our Adjustable Stud Brackets are affixed directly onto wood studs or steel studs:
Wood Studs: Mount to the side of wood framing studs using 5/16" x 1.5" hex head wood screws (Qty: 2 per bracket, included).
Steel Studs: Can be mounted to steel studs (minimum 18-gauge) using 5/16” sheet metal screws. We strongly recommend outfitting steel studs with wood studs when possible. Mounting screws are not included for steel stud applications.
Dimensions & Weights
14" x 20.5" Min - 24" Max x 0.25" Thick
