Details

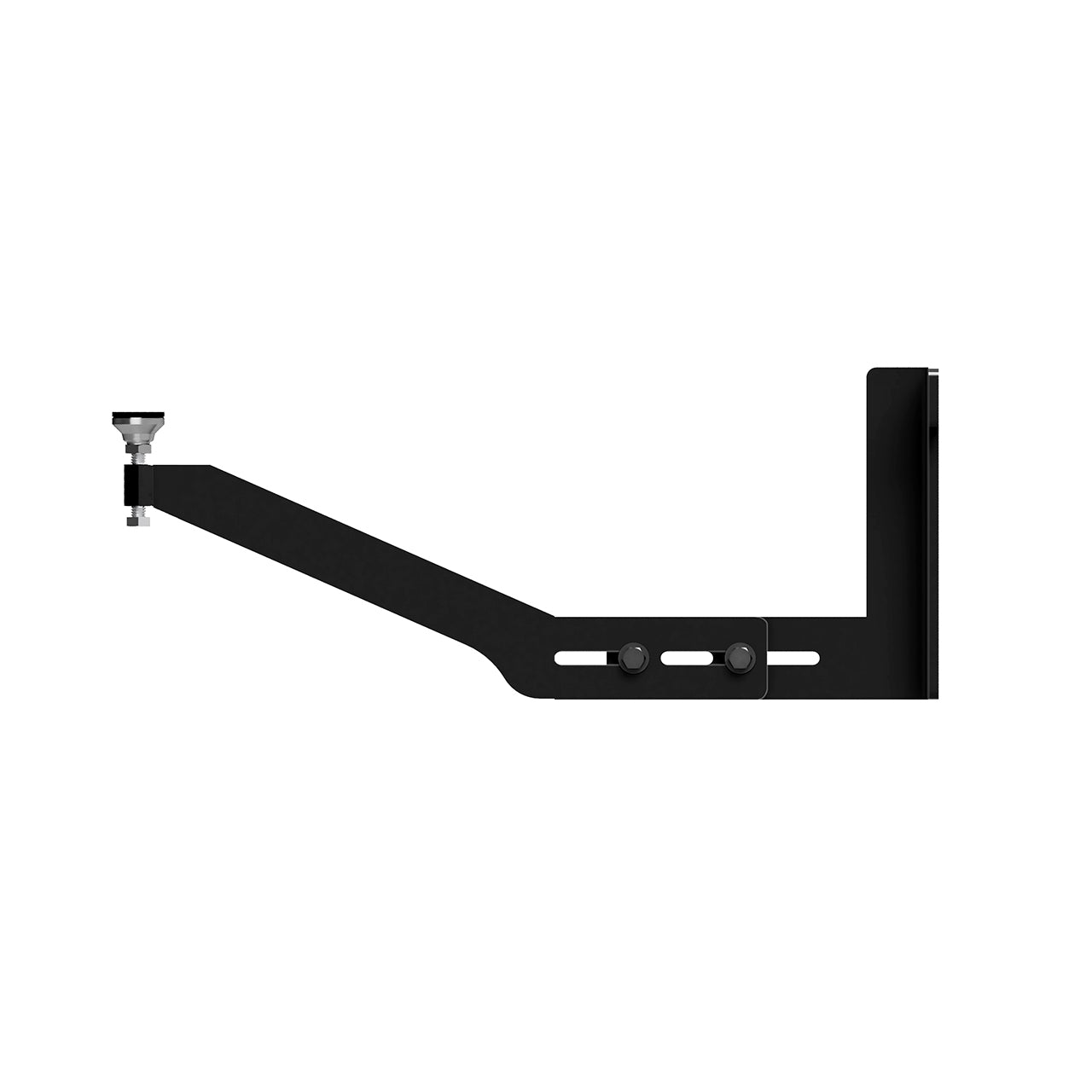

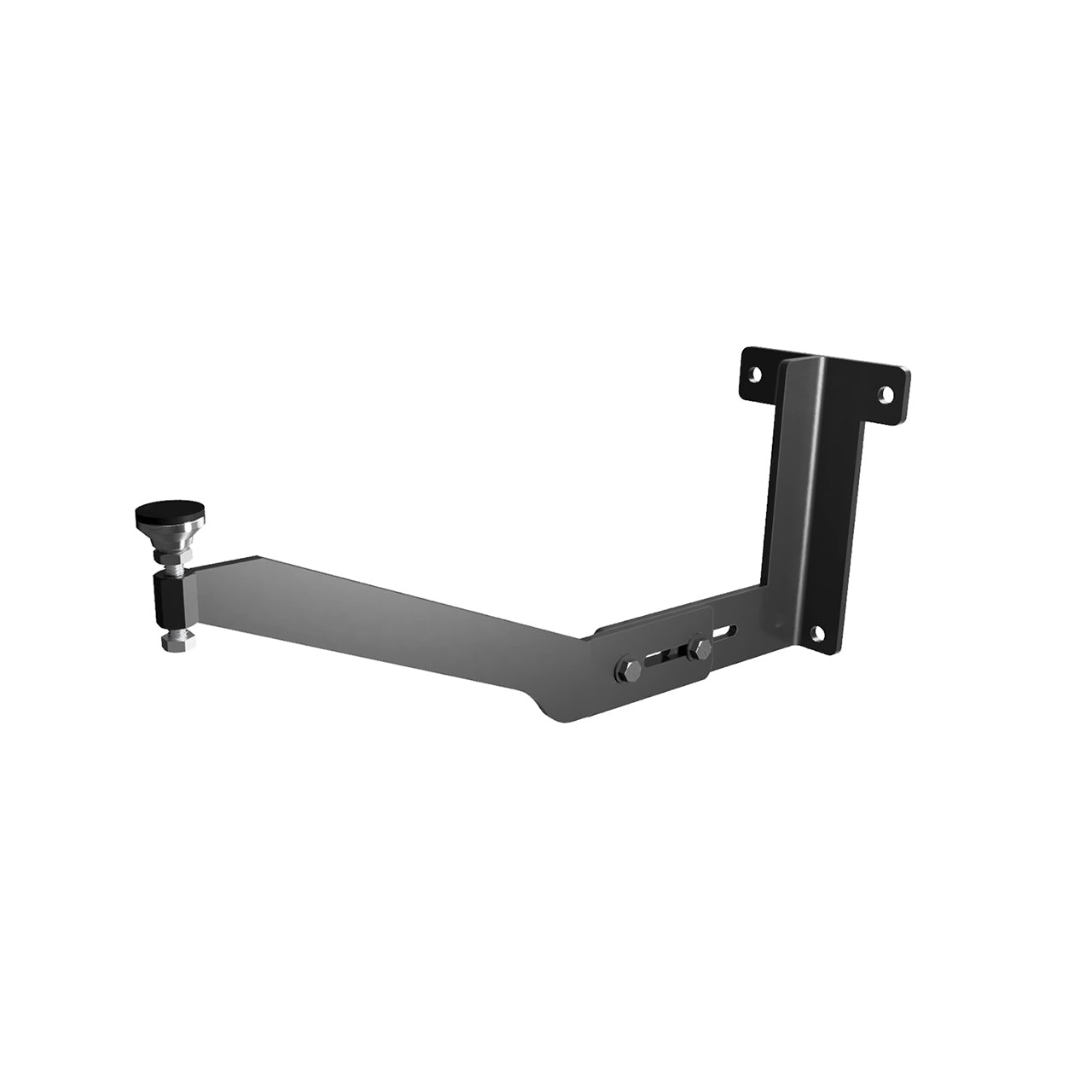

Trueform’s unique adjustable CMU brackets are engineered to support our floating concrete ramp sinks when mounting to hollow CMU or other masonry surfaces. They are affixed directly onto hollow CMU or other masonry surfaces using the Hilti HIT-HY 270 anchoring system. Each bracket has a slot feature that permits up to 3.5” of lateral adjustment as well as an adjustable swivel foot to ensure that the sink is evenly supported across all bracket locations. Provided these brackets are spaced no more than 32" apart, sinks of nearly any length can be wall-mounted.
FSB-B2-AS: For ramp sinks with up to 17"-20.5” counter depth
FSB-B2-AL: For ramp sinks with 20.5”-24” counter depth
- When installed correctly, ADA compliance is achieved.
- Steel Thickness: 1/4”
- Sleeves and anchors for each bracket are included
- Please note the HIT-HY epoxy mortar is NOT included
- Brackets ship within 1-2 business days
- Made in the USA
- For volume orders or for more information, contact us at 888-474-7978
Dimensions & Weights
14" x 17" Min - 20.5" Max x 0.25" Thick
Shipping & Delivery
Free shipping via FedEx in the 48 contiguous US states only. Shipping to Hawaii, Alaska or International locations will incur additional shipping costs. Please call at 888-474-7977 for a quote. See Terms & Conditions for details
